Spray Patterns

Flat Spray

Flat spray nozzles produce small- to medium-sized drops forming a flat or sheet-type spray pattern that's typically used in manifolds and headers. The flat spray pattern is ideal for cleaning, rinsing, pressure washing, cooling, coating and surface preparation.

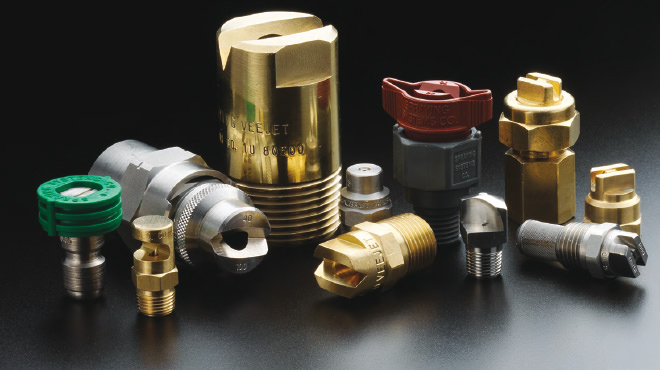

group of flat spray nozzles in brass and stainless steel

$name

  • Nozzle styles include threaded, flanged and quick-connect.
  • Spray pattern variations include standard, wide angle and narrow angle.
  • Spray angles range from 0º (solid stream, for highest impact per unit area) to 170°.
  • Flow rates range from 0,013 to 4720 lpm.
  • Operating pressure ranges up to 275 bar.
  • Connections include 1/8" to 2" pipe sizes, male / female NPT and BSPT.
  • Materials include brass, mild steel, 303 stainless steel, 316 stainless steel, 400 series stainless steel, polyvinyl chloride, hardened stainless steel, ProMax® and other specialty materials.

Download 3D CAD models of flat spray nozzles here: Metric units

Want to learn more about the right spray pattern for your operations? Contact Us
