Web Trimming
Paper manufacturers rely on web trimming technology from Spraying Systems Co. Our trimming nozzles produce powerful, needle-like solid streams for trimming, cutting and slitting all grades of paper.

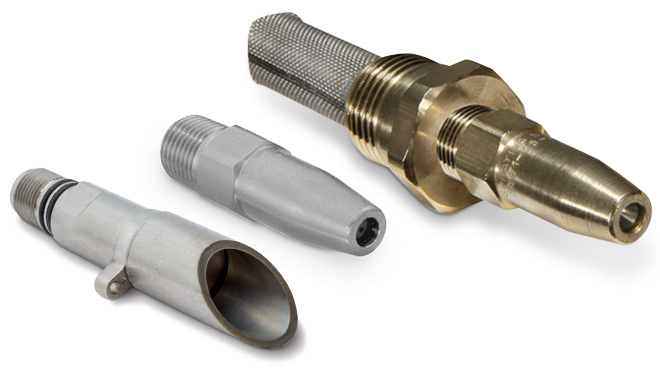

UltraStream Nozzles
Precise, even trimming of a wide variety of paper grades at operating pressures up to 1000 psi (70 bar) and flow rates from .02 to 2.3 gpm (.08 to 8.7 lpm).
- Needle-like solid stream nozzles are designed for edge trimming, cutting and slitting operations and can be placed further away from target to reduce buildup
- Single orifice versions
- Suitable for use with most paper grades
- Available with a strainer to minimize clogging -- especially helpful when using recirculated water
- Feature ruby, 316 stainless steel or high-alumina ceramic orifices
-
Dual orifice versions
-
Provide twin parallel solid stream sprays for precise edge trimming on fine and specialty papers
-
Eliminate the need for using two nozzles in tandem, reducing backsplash and simplifying spray alignment
-
Feature ruby orifices for long-lasting durability
-
-
Swivel nozzles and swivel adapters enable easy alignment of dual orifice nozzles and correct positioning of a drip shield to the outside of the paper web
-
Nozzles with a shrouded orifice are available for protection, ease of alignment and help in guiding buildup away from the moving web

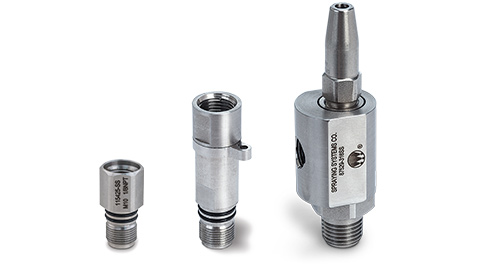

Trimming Accessories
- Swivel adapters allow beveled edge or dual nozzles to be correctly aligned.
- Air barrier adapter uses compressed air to keep nozzle free of debris.
Alignment Devices
- Customizable unit features single, double or triple pipes to fit your trimming setup.
- Design allows for quick and easy adjustment to the exact trim position without the use of tools.
