Web Trimming

Paper manufacturers rely on web trimming technology from Spraying Systems Co. Our trimming nozzles produce powerful, needle-like solid streams for trimming, cutting and slitting all grades of paper.

UltraStream®  Trimming Nozzles

UltraStream Nozzles

Precise, even trimming of a wide variety of paper grades at operating pressures up to 1000 psi (70 bar) and flow rates from .02 to 2.3 gpm (.08 to 8.7 lpm).

  • Needle-like solid stream nozzles are designed for edge trimming, cutting and slitting operations and can be placed further away from target to reduce buildup
  • Single orifice versions
    • Suitable for use with most paper grades
    • Available with a strainer to minimize clogging -- especially helpful when using recirculated water
    • Feature ruby, 316 stainless steel or high-alumina ceramic orifices
  • Dual orifice versions

    • Provide twin parallel solid stream sprays for precise edge trimming on fine and specialty papers

    • Eliminate the need for using two nozzles in tandem, reducing backsplash and simplifying spray alignment

    • Feature ruby orifices for long-lasting durability

  • Swivel nozzles and swivel adapters enable easy alignment of dual orifice nozzles and correct positioning of a drip shield to the outside of the paper web

  • Nozzles with a shrouded orifice are available for protection, ease of alignment and help in guiding buildup away from the moving web

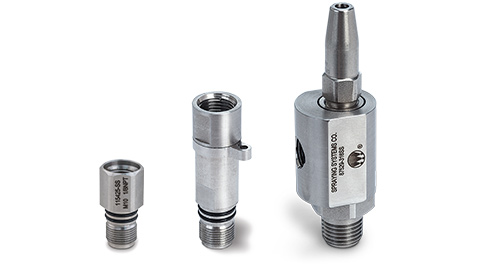

UltraStream Nozzle Accessories

Trimming Accessories

  • Swivel adapters allow beveled edge or dual nozzles to be correctly aligned.
  • Air barrier adapter uses compressed air to keep nozzle free of debris.
Alignment Devices for UltraStream Nozzles

Alignment Devices

  • Customizable unit features single, double or triple pipes to fit your trimming setup.
  • Design allows for quick and easy adjustment to the exact trim position without the use of tools.
Contact us to find the right solution for your application.  Talk to an expert
