Engineered for Ultra-Fine Powders. Built for Spray Drying Precision

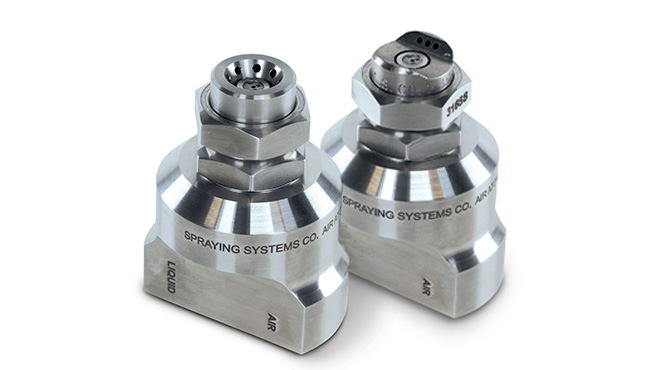

In spray drying, droplet size dictates quality, efficiency, and consistency. The SprayDry® DualDry™ Nozzle delivers smaller droplets, down to less than 10 microns, using a powerful dual atomization process. High-pressure hydraulic spraying forms the initial fine droplets, then compressed air further reduces and tightens the distribution for better powder uniformity and faster drying.
From ingredients and flavorings to dairy and pharmaceuticals, the DualDry™ is engineered to meet the strict demands of modern spray drying systems — delivering finer powders, improved process control, and energy-efficient performance.
Smarter Spray Drying with Dual Atomization
Traditional air atomizing nozzles often struggle to consistently produce ultra-fine powders. The DualDry™ solves this by integrating two stages of droplet formation: a high-pressure liquid stream initiates the atomization, and compressed air finishes the job, delivering a narrower drop size distribution and improved repeatability across batches.
Operators can easily fine-tune performance with multiple air caps, orifice sizes, and nozzle configurations. Optional steam compatibility makes the nozzle ideal for starch cooking. Removing other thermal processing applications.
Built for Precision, Flexibility, and Performance
Ideal For:
Flavorings & Ingredients
Starch & Maltodextrin
Dairy & Pharmaceutical Products
Core Advantages:
Dual-stage atomization for fine to ultra-fine droplets
Up to 75% reduction in drop size
<10 micron droplets achievable (depending on conditions>
Narrower droplet distribution vs. standard air atomizing nozzles
Easily customized: air caps, orifices, and configurations available
Steam-compatible design for starch and high-temp applications
Why Droplet Size Matters
In spray drying, finer droplets translate directly into:
-
Faster evaporation of droplets
-
Reduced operating temperature
-
Higher product quality
-
Improved solubility and reconstitution
-
Reduced wall deposition and increased yield
By producing consistently smaller droplets, the DualDry™ enables processors to meet demanding specifications while improving drying efficiency and product yield.
| Nozzle Type | Orifice | Core | Air Pressure psi (bar) |
Liquid Flow Rate at 1,000 psi (69 bar) GPH (LPH) |
Spray Angle Degrees |
Drop Size Dv0.5 Microns |
| Hydraulic, High Pressure SK Nozzle |
SKY16-MFP | SIY78 | No Air | 11.4 (43) | 61° | 61 |
| SKY17-MFP | SIY60 | 22.8 (86) | 69° | 50 | ||
| SKY28-MFP | SIY51 | 102 (386) | 50° | 56 | ||
| DualDry with external mix flat cap |
SKY16-MFP | SIY78 | 100 (6.9) | 4.8 (18) | 52° | 5 |
| SKY17-MFP | SIY60 | 21.6 (82) | 56° | 11 | ||
| SKY28-MFP | SIY51 | 103.8 (393) | 59° | 20 | ||
| DualDry with external mix round cap |
SKY16-MFP | SIY78 | 100 (6.9) | 11.4 (43) | 14° | 9 |
| SKY17-MFP | SIY60 | 21.6 (82) | 25° |
12 | ||
| SKY28-MFP | SIY51 | 87.6 (332) | 32° |
20 |
Backed by Real Support. Built on Proven Expertise.
Local Expertise. Global Impact.
Decades of Spray Drying Experience
Reliable Performance
Partnership, Not Just Products
Engineered for Efficiency. Aligned with Sustainability.
Smaller droplets mean faster drying, less energy use, and reduced waste. With longer service life and fewer changeouts, this nozzle supports both performance goals and sustainability targets.
Contact an Expert
Ready to Upgrade Your Spray Drying?
If you’re looking to reduce drop size, tighten particle specs, or optimize energy use in your spray drying operation, the DualDry™ is the solution. Get started with a $1,000 on-site trial risk free. Our spray experts will help you integrate, test, and evaluate performance directly in your process.
