Spray Patterns

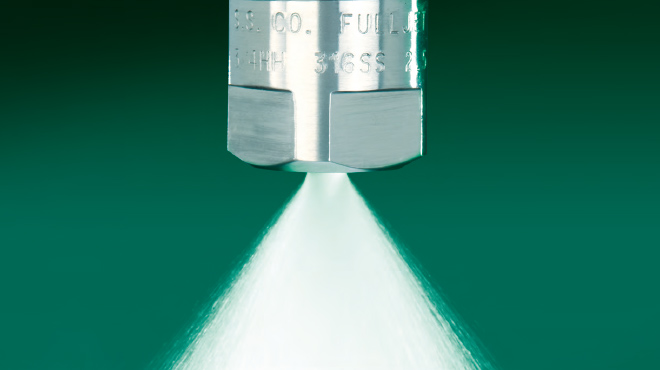

Full cone nozzles produce a solid cone-shaped spray pattern with a round impact area.

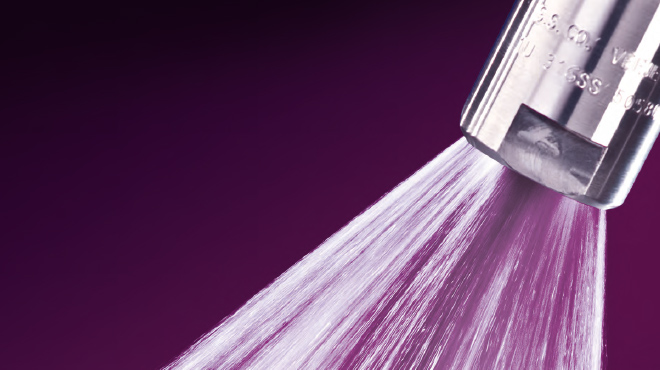

Flat spray nozzles produce a flat or sheet-type spray pattern. Solid stream nozzles are included in this group.

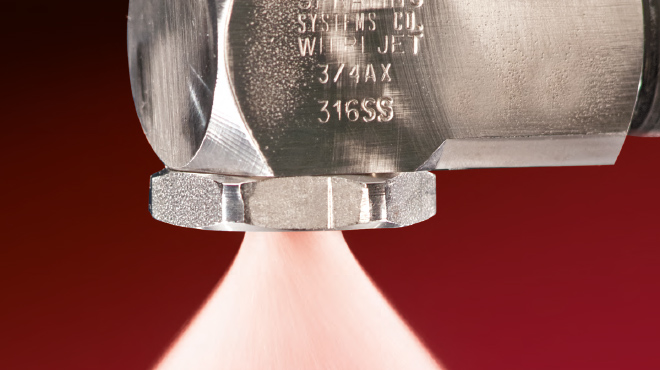

Hollow cone nozzles produce a hollow cone pattern with a ring-shaped impact area.

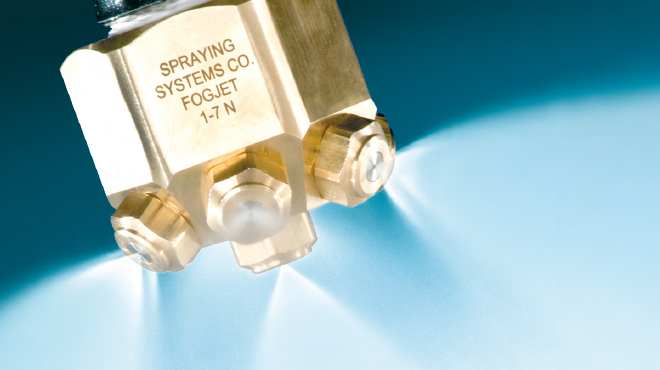

Fine spray nozzles produce very small drops and deliver a very fine spray using liquid pressure only — no compressed air required.

Air atomizing spray nozzles (also called two-fluid nozzles) produce finely atomized sprays using compressed air.
