AutoJet® E250+ Spray Controller for Efficient Spray Nozzle Timing Control
Discover the AutoJet® E250+ Spray Controller from Spraying Systems Co., your solution for basic timing control over air- and electrically-actuated spray nozzles. With 2 timing channels, each equipped for automatic spray nozzle/cylinder air outputs and atomizing air solenoid valve output, this intuitive interface allows for the control of up to 4 electrically-actuated spray nozzles. Enhance your operations with 20 timing recipes, featuring delay and spray times settable with a resolution of 0.1s, and memory for up to 6 objects between trigger sensor and nozzle position. Equipped with fault outputs for empty tank alerts, excessive triggers, and automatic tank filling, plus 3 level sensor inputs for comprehensive monitoring. Experience fast repeat cycles up to 5HZ and straightforward setup, ensuring efficient use of resources and high-quality outcomes.
- 2 timing channels with each:
- Trigger input
- 1 automatic spray nozzle/cylinder air outputs
- 1 atomizing air solenoid valve output with anticipator/follower timing or, alternatively, to connect a 2nd electrical spray nozzle.
- Control up to 4 electrically-actuated spray nozzles via the intuitive user interface
- 20 timing recipes with delay and spray times that can be set with a resolution of 0.1s
- Up to 6 objects can be remembered between trigger sensor and automatic spray nozzle position
- Fault output:
- Empty tank
- Too many triggers
- Automatic tank filling
- Tank filling output to control a valve to fill the tank
- 3 level sensor inputs: Low - High - Overflow
- Fast repeat cycle up to 5HZ
- Easy set-up
- improvement on performance & efficiency use of resources.

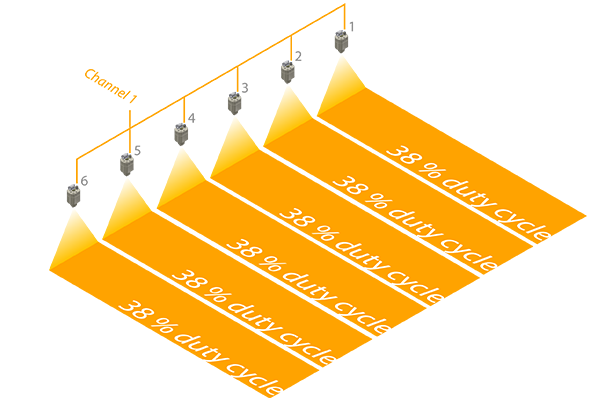

Single Channel

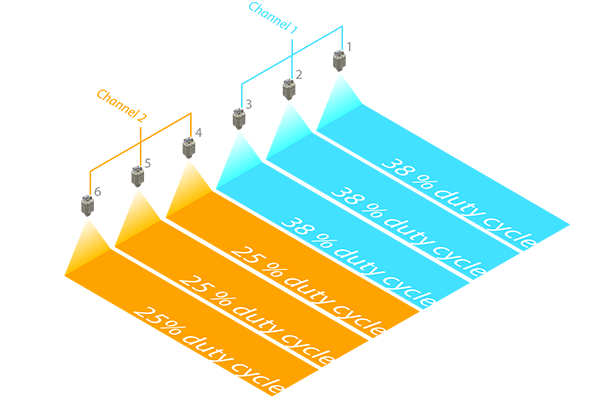

Dual Channel
