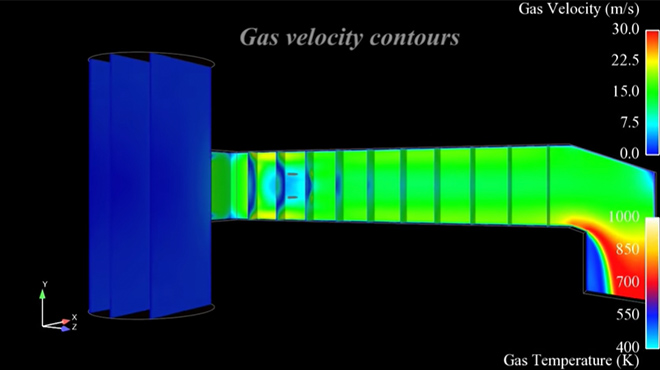

CFD Animation of the Effects of Nozzle Placement in Gas Stream

The Computational Fluid Dynamics (CFD) animation was conducted to show that nozzle placement could improve the evaporation rate of the injection fluid in a refinery application. The purpose of the study was to reduce gas temperature and maximize evaporation.
