Dairy

Tank Cleaning for the Dairy Industry – Effective, Efficient, Sanitary

Dairy

Tank Cleaning for the Dairy Industry – Effective, Efficient, Sanitary

We can optimize your tank cleaning operations to improve efficiency, reduce operating costs, and improve hygiene for less product scrap and improved product safety. Minimize downtime and improve worker safety with automated tank cleaning solutions from Spraying Systems Co.

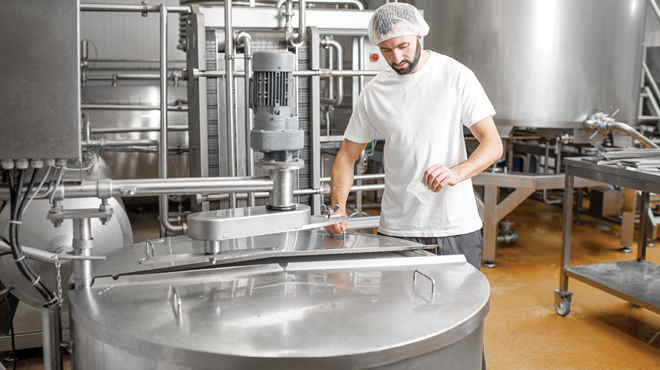

dairy tank cleaning employee

Use Less Water Without Sacrificing Tank Cleaning Efficacy

The dairy industry faces many challenges in maintaining sanitary conditions in its processing tanks.

  • Removing stubborn, high-fat residues
  • Preventing bacterial contamination
  • Larger and longer that make achieving the necessary reach, coverage, and impact a greater challenge
  • Cleaning around obstructions or in hard to reach areas
  • Excessive water that is cost prohibitive and has an unsustainable impact on the environment
  • Regulation and enforcement standards are constantly changing

When addressing these challenges, dairy processors must ensure superior product quality, optimize water and chemical use, improve worker safety, all while still adhering to the highest standards of hygiene and sanitation


CONTACT US

Efficient Tank Cleaning Solutions

Maintaining hygiene standards in dairy processing is critical. In order to achieve this, processors utilize:

When done right, this can be accomplished while also gaining significant water savings while ensuring thorough sanitation.

By integrating our advanced tank cleaning systems, dairy processors can reduce downtime, lower water usage, and ensure compliance with industry hygiene standards.

But it takes more than equipment to ensure proper cleaning of your tanks, totes, vats, drums and more. It takes experience and expertise in addition to an extensive product line. Dairy processors depend on Spraying Systems Co. for our broad spectrum of tank cleaning solutions and our unmatched expertise in helping customers clean all their vessels thoroughly and quickly. Whether your operations require gentle rinsing or the removal of tough residues, we have the right product for any tank measuring up to 100 ft. (30.5 m) in diameter. The goal is to ensure tanks are cleaned thoroughly, in the least amount of time, using the least amount of water/chemicals possible.

Our tank cleaners are available in a range of flow rates and materials. Some are available with different coverages, nozzle configurations, choice of connection styles, extension lengths, and more.

Choosing The Right Tank Cleaning Machine For Your Operation

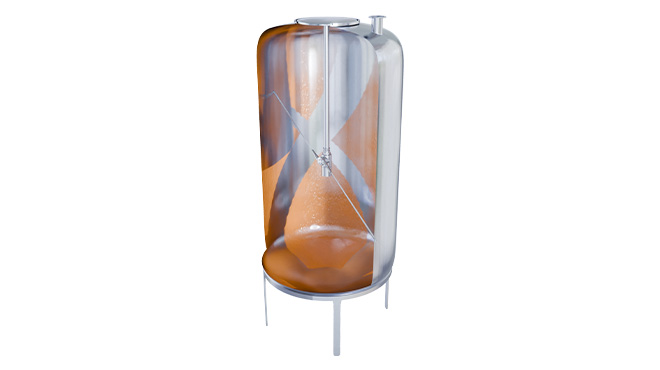

3d render of a high impact tank cleaning nozzle

High-Impact Cleaning

is required to remove stubborn residues such as layers of a dried substance. Tank cleaners in this category generally use high pressure and/or high flow and spin at slow rotational speeds to maintain high impact. Solid stream nozzles are used to maximize impact.

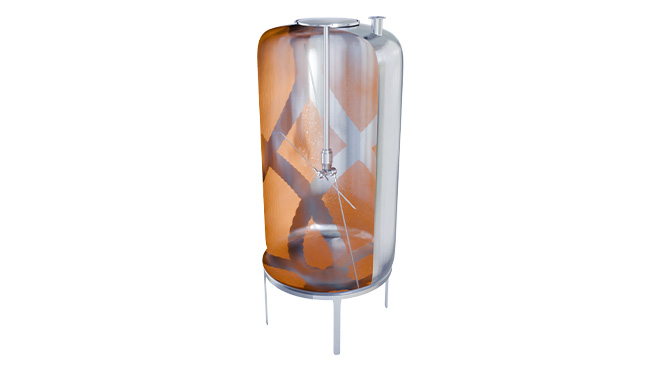

3d render of a medium impact tank cleaning nozzle

Medium-Impact Cleaning

is required when good impingement is needed to remove residues. Tank cleaners that provide medium impact generally use solid stream nozzles at medium flows and pressures. Rotational speed is slightly faster than high-impact tank cleaners but much slower than free-spinning nozzles to ensure adequate impact on target areas.

3d render of a low impact tank cleaning nozzle

Rinsing

is used when distributing cleaning solution throughout the tank without impact to provide sufficient cleaning. Rinsing nozzles are typically free-spinning or stationary spray balls.

Video - TankJet 78M Sanitary Tank Cleaner

Superior Tank Cleaning for Sanitary Environments

All of our sanitary tank cleaners meet the criteria for hygienic design and feature food contact materials of construction. We have the largest selection of 3-A Certified rotary tank cleaners in the industry. Our TankJet 78 and 78M are the only multi-axis high-impact tank cleaners with 3-A certification. Other 3-A certified products include medium- and low-impact tank cleaning nozzles and spray balls and require limited to no maintenance.

LEARN MORE
dairy tank cleaning applications

Tanks are Getting Larger and Longer

Effective cleaning for all dairy processing applications and tanks of all types, shapes and sizes (5 to 100 ft in diameter), including milk, cheese, yogurt, ice cream, whey, dairy powder, tanker trucks, and more.

A maximum tank diameter reflects a tank cleaning nozzle positioned in the center of the tank with an effective throw of half the tank diameter (the tank radius) to ensure the required coverage and impact (e.g., a 100 ft diameter tank requires a nozzle with an effective spray of 50 ft). The closer the nozzle is to the tank wall, the greater the impact. Keep the clearance, tank material, and drainage capacity in mind.

If We Don't Have the Nozzles You Need, No One Does

tankjet 63225 spray balls

Stationary

Ideal for sanitary rinsing of dairy processing, tanks, and vessels.

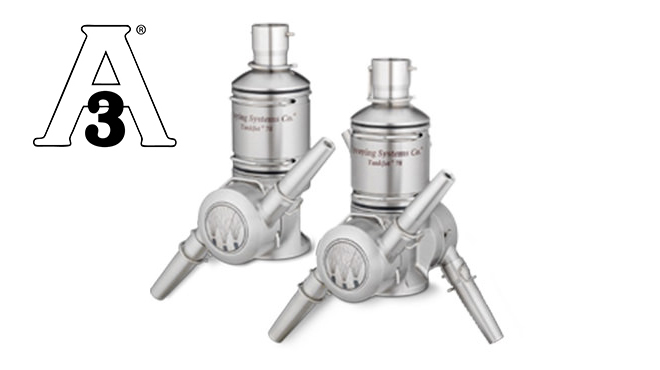

tankjet 78 fluid driven tankcleaner

Fluid-Driven Turbine

Spray coverage options include 180° and 360°, and they can be easily installed in any position. These nozzles are ideal for the high-impact cleaning that the dairy industry requires.

motor-driven tank cleaning nozzles

Motor-Driven

These motorized units provide thorough, quick-cleaning, and trouble-free operation ideal for high-impact cleaning of medium to large tanks. Spray coverage options include 180° and 360°, and they can be easily installed in any position.

Optimizing Your Tank Cleaning Operations

Tank cleaning equipment is designed to yield specific performance under specific conditions. A variety of factors can affect results. Even when tank cleaning equipment appears to be working as expected, there may be room for improvement. Adjustments are often possible to achieve more consistent results, improve efficiency, reduce the length of time tanks are out of service, and lower operating costs.

Spraying Systems Co. Periodic Maintenance Program

With regular inspection and servicing, you can reduce downtime, resource consumption, and operating costs, while improving cleaning consistency and service life.

Choose from:

man assembling a tankjet nozzle

Factory Repair

Two U.S.-based service centers – Wheaton, IL and San Luis Obispo, CA.

  • Turnaround in as little as 48 hours
  • We address only the parts that need repairing/replacing
  • Readily available US-made parts
cloud-sellers employee assembling tank cleaning nozzle

On-Site Repair

Spraying Systems Co. specially trained technicians with parts-stocked vans will repair your units on-site.

two men talking in a factory

On-Site Factory Training

Receive On-Site, Hands-On Maintenance Training For Your Team. Learn how to identify wear components, troubleshoot issues, and perform routine maintenance.

Save more than 50% in maintenance and repair cost CONTACT AN EXPERT

Frequently Asked Questions (FAQs)

Do tank cleaners require heated water to achieve an effective clean?

Tank cleaners do not always require heated water for an effective clean. Increasing cleaning impact, reach and coverage through higher liquid pressure and flow can eliminate the need for hot water, which can lead to significant energy savings.

How can I shorten cleaning time?

To reduce cleaning time and return tanks to service faster, you can increase impact by increasing flow and/or pressure, increase the temperature of the cleaning liquid, adjust the chemistry-to-water concentration, reposition the tank cleaning equipment, use multiple tank cleaners instead of a single unit, or use a more efficient tank cleaner.

What if my tank has agitators/blades, coils or other internal obstructions?

Internal obstructions block the spray from hitting the tank wall. These obstructions, called “spray shadows”, create areas where nozzles can’t reach.

For a thorough clean:

  • Optimize the location of the nozzles. A powerful tank cleaning machine may be able to provide enough impingement to get around the obstructions and reach tank walls, but it will take longer and require higher flow rates and pressures.
  • Use two to three smaller, less powerful tank cleaners in different locations to ensure complete coverage.
  • If the tank only has a single entry opening, special lances and flanges allow the nozzle turret to moved to multiple locations in the tank.

In addition to the tank cleaner, what else do I need to consider to achieve an effective, efficient clean?

  • Hot water may be needed to remove some residues. In some cases, increasing cleaning impact can reduce or even eliminate the need for hot water and lead to a dramatic reduction in energy use.
  • In some cases, a simple increase in liquid pressure and flow may reduce the number of cycles needed for thorough cleaning. Faster cleaning can reduce downtime while also reducing water and chemical consumption.
  • Internal obstructions, like agitator shafts and blades, block the spray from hitting tank walls. Utilizing equipment with the flexibility to reposition tank cleaning equipment can make it easier to clean tanks of varying shapes and sizes. Specialized lances and adjustable flanges can also be used to precisely position nozzles.
man and women in lab coats and hair nets

Consult Our Spray Experts

Looking to optimize your tank cleaning operations? Spraying Systems Co. local sales engineers will evaluate your operations and equipment, offer optimization suggestions to achieve your cleaning objectives. Your local expert can conduct an on-site evaluation, demonstrate products, conduct proof-of-concept tests, assist with payback calculations and arrange for product trials. Your local expert can also help you estimate your potential savings from reducing water, chemical and energy use with automated tank cleaners.

CONTACT AN EXPERT

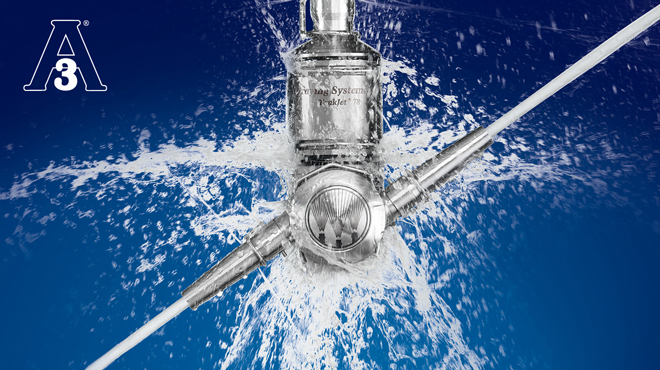

tankjet 78 spraying water

TRADE IN & UPGRADE

RECEIVE UP TO 25% OFF WHEN YOU TRADE-IN & UPGRADE TO OUR ADVANCED TANK CLEANING SYSTEMS

Simply trade-in your current tank cleaning nozzle, even if it's not operational, and upgrade to one of our advanced cleaning systems. Contact your local spray expert for more information.

*Restrictions apply. New customers only.


UPGRADE TODAY

Get Started Today
