Controlador de Pulverización AutoJet® Modelo 2150+


The AutoJet Model 2150+ Spray Control Panel features plug and spray functionality to improve the spray performance of PulsaJet® nozzles and other automatic spray nozzles.

Advanced-level Control of PulsaJet Automatic Nozzles

El controlador de pulverización AutoJet Model 2150+ trabaja con hasta 16 boquillas PulsaJet, monitoreando las variables preestablecidas para asegurar la colocación exacta de la pulverización sobre el objetivo. Es ideal para recubrir, asperjar sobre bandas transportadoras, lubricar y marcar. Connections are conveniently located on the bottom of the panel and are easily accessible. Panels can be mounted on a wall, on an optional frame or on a mobile cart.

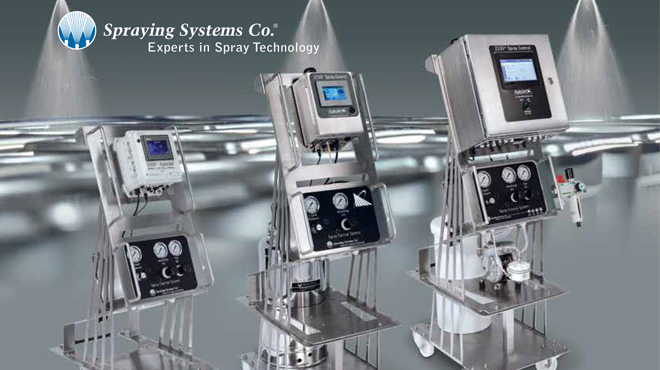

AutoJet 2150+ Spray Control Panel with Base

Key features of the AutoJet Model 2150+:

  • 7" color HMI touch screen
  • Single and dual channel versions available
  • Timing control of up to 16 air- or electrically-actuated hydraulic or air atomizing nozzles per channel
  • Fixed or variable spray time and fixed or variable spray distance; repeat function for all modes
  • Liquid pressure control for spray nozzles
  • Precision Spray Control for uniform coverage and accurate flow rate adjustments based on line speed
  • HMI Wi-Fi access to adjust settings, view alarms, schedule/review maintenance
  • Line speed: 5 to 400 ft./min. (1.5 to 121.9 m/min.)
  • Optional zone control to turn groups of PulsaJet nozzles on or off with either a digital signal or manual switch.
  • Other Options: Storage of up to 20 recipes, real-time monitoring of flow rate and pressure, line speed encoding
Las ofertas del sistema varían según la región. Comuníquese con su oficina de ventas local para conocer las opciones.
