Tire Manufacturer Saves More Than €20,000 per Year with New Drying System

Tire Manufacturer Saves More Than 20K


Jul 19

Industrial Levorin, a tire manufacturer in Brazil, needed to dry extruded motorcycle tire inner tubes after they emerged from a cooling bath. Air knives and crimped pipes were used but these solutions were noisy, did a poor job of drying and consumed a great deal of compressed air.

AutoJet® Blower System

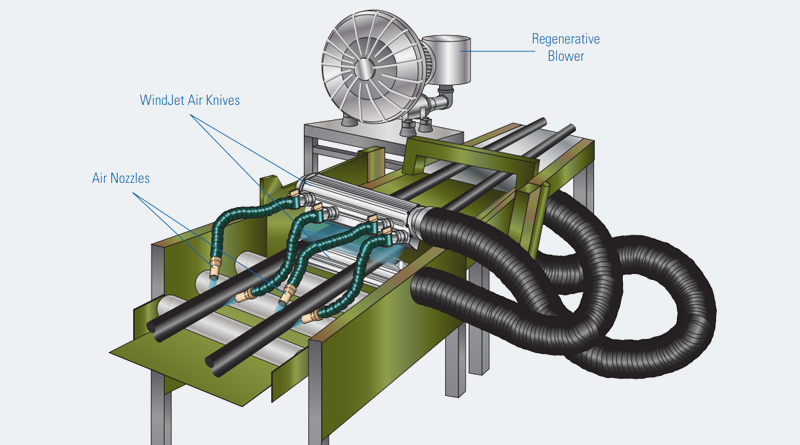

Spraying Systems Co.’s solution consisted of two 305mm WindJet® Air Knives powered by a single 10 HP blower. The air knives are directly above and below the extruder line, which is right after the tubes leave the immersion bath. Additional air nozzles on flexible tubing are positioned at the edges of the inner tubes to ensure complete drying. The WindJet® system uses a low-noise, low-maintenance regenerative blower which is extremely energy-efficient. The air knives deliver clean, dry, high-velocity air streams that dry the inner tubes before further processing.


The drying efficiency of the WindJet® system is far superior to the system used previously and the noise level has been reduced. Prior to installing the WindJet® Air Knife package, Industrial Levorin had been spending €31,400 annually on compressed air. The annual operating expense for the WindJet® system is just over 9,000 – an annual savings of more than 22,000. The savings on operating costs generated a payback for the new system of just under one year.
