Web Trimming Nozzles & Accessories
Better precision, longer wear life, fewer paper breaks and reduced operating costs are what you can expect from our web trimming nozzles and accessories. Choose from ruby orifice insert UltraStream® web trimming nozzles, strainers, swivels, swivel adapters, unique Air Barrier Adapter, Alignment Device and more. Plus, robust manufacturing at our factory in the USA means delivery of nozzles in days, not weeks. Request a quote today. Our new lower pricing makes these products a better value than ever before. Just indicate the products and quantities of interest on the form below and you’ll receive a quotation within 48 hours.
UltraStream Nozzles
Powerful, needle-like solid streams for trimming, cutting and slitting all grades of paper. Ruby orifice versions provide extended wear life and new, lower pricing.
- Operating pressures up to 1000 psi (70 bar) and flow rates from .02 to 2.3 gpm (.08 to 8.7 lpm)
- Single orifice versions
- Suitable for use with most paper grades
- Available with a strainer to minimize clogging -- especially helpful when using recirculated water
- Feature ruby, 316 stainless steel or high-alumina ceramic orifices
-
Dual orifice versions
-
Swivel nozzles and swivel adapters enable easy alignment of dual orifice nozzles and correct positioning of a drip shield to the outside of the paper web
-
Nozzles with a shrouded orifice are available for protection, ease of alignment and help in guiding buildup away from the moving web
UltraStream Nozzle Options

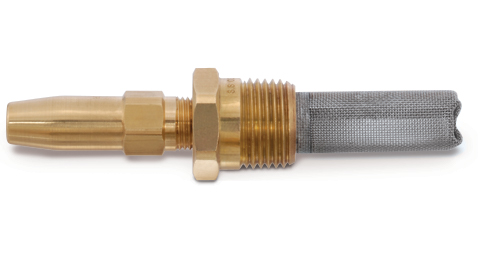

38170 Single Orifice with Strainer

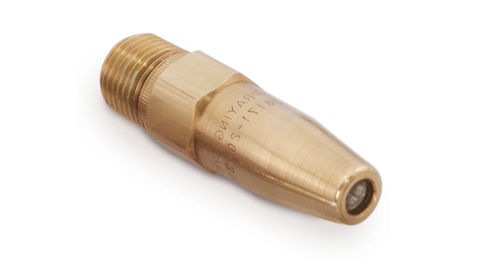

38171 Single Orifice

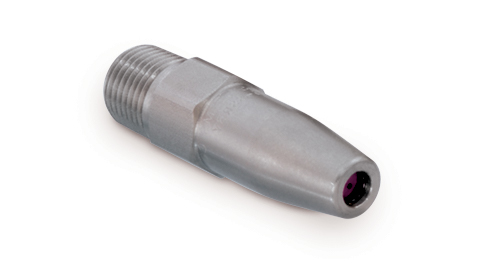

48461 Single Ruby Orifice

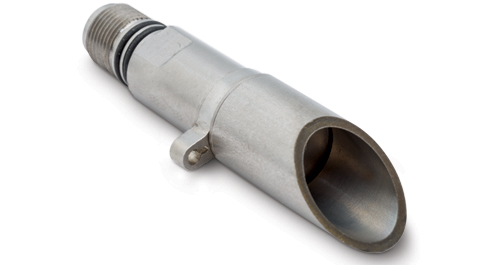

39610 & 39692 Single/Dual Ruby Orifice Swivel

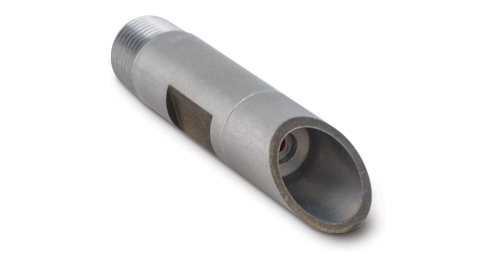

72242 Single Ruby Orifice
58035-2 & 56795-2 Dual Ruby Orifice
UltraStream Nozzle Accessories
Our accessories are designed to Improve precision and minimize paper breaks. Purchase accessories and nozzles together to speed set-up by purchasing accessories and nozzles together.
115425 & 115427 Trimming Feed Converter

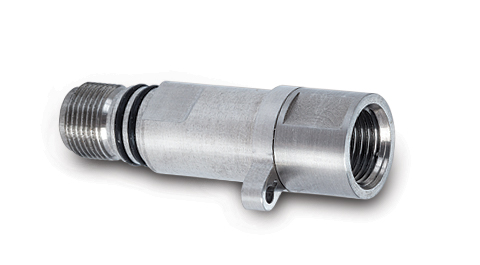

39290 Swivel Adapter

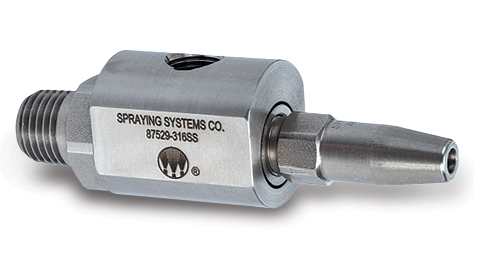

87529 Air Barrier Adapter Shown with 48461 UltraStream
Alignment Devices for UltraStream Nozzles
- Quick and easy adjustment of UltraStream® nozzles to the exact trim position reduces downtime for nozzle alignment up to 70%
- Use with different paper widths and grades; horizontal and rotational adjustments can be made quickly and accurately in 10 mm increments to ensure precise control of nozzle location – no tools required
- Record final positions to ensure repeatable performance using calibration devices
Improve operator safety – handles and scales are located away from the nozzles
Multi-pipe alignment device provides a redundant stream to prevent sheet breaks due to spitting or broken streams
Goose-necked pipe design prevents turbulence in pipe before nozzle
Set-up is simple – UltraStream nozzles attach easily to arms; alignment arms can be removed without disrupting remaining arms and nozzle locations
For use with single or dual UltraStream nozzles with or without 38170 strainers
Stainless steel construction
YES, I’D LIKE A QUOTE!
Check the products of interest and quantity. Quotes will be provided within two working days.
