Web Trimming Nozzles & Accessories


Better precision, longer wear life, fewer paper breaks and reduced operating costs are what you can expect from our web trimming nozzles and accessories. Choose from ruby orifice insert UltraStream® web trimming nozzles, strainers, swivels, swivel adapters, unique Air Barrier Adapter, Alignment Device and more. Plus, robust manufacturing at our factory in the USA means delivery of nozzles in days, not weeks. Request a quote today. Our new lower pricing makes these products a better value than ever before. Just indicate the products and quantities of interest on the form below and you’ll receive a quotation within 48 hours.

UltraStream®  Trimming Nozzles

UltraStream Nozzles

Powerful, needle-like solid streams for trimming, cutting and slitting all grades of paper. Ruby orifice versions provide extended wear life and new, lower pricing.

  • Operating pressures up to 1000 psi (70 bar) and flow rates from .02 to 2.3 gpm (.08 to 8.7 lpm)
  • Single orifice versions
    • Suitable for use with most paper grades
    • Available with a strainer to minimize clogging -- especially helpful when using recirculated water
    • Feature ruby, 316 stainless steel or high-alumina ceramic orifices
  • Dual orifice versions

  • Swivel nozzles and swivel adapters enable easy alignment of dual orifice nozzles and correct positioning of a drip shield to the outside of the paper web

  • Nozzles with a shrouded orifice are available for protection, ease of alignment and help in guiding buildup away from the moving web

Performance Data in US units

Performance Data in Metric units

UltraStream Nozzle Options

38170 Single Orifice with Strainer

38170 Single Orifice with Strainer

  • 3/8" male connection
  • Ceramic or 316 stainless steel orifice
  • Brass body and brass strainer body with 304 stainless steel screen

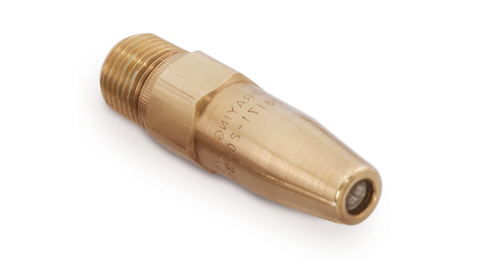

38171 Single Orifice

38171 Single Orifice

  • 1/8" male connection
  • Ceramic or 316 stainless steel orifice
  • Brass body

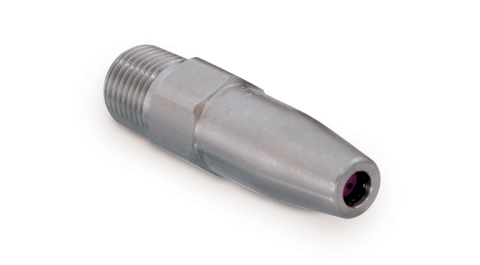

48461 Single Ruby Orifice

48461 Single Ruby Orifice

  • 1/8" male connection
  • Synthetic ruby orifice and 303 stainless steel body
39610 Single Ruby Orifice Swivel

39610 & 39692 Single/Dual Ruby Orifice Swivel

  • M10 x 0.75 male connection
  • Shrouded orifice with 360° swivel action
  • 303 stainless steel body
  • 39610 -- synthetic ruby orifice produces single solid steam spray
  • 39692 – synthetic ruby orifice produces dual solid stream sprays
72242 Single Ruby Orifice

72242 Single Ruby Orifice

  • 1/8" male thread connection
  • Synthetic ruby orifice and 303 stainless steel body
  • Shrouded orifice

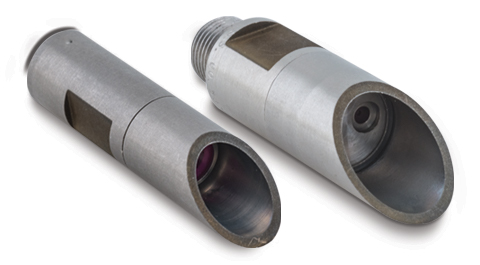

58035-2 & 56795-2 Dual Ruby Orifice

58035-2 & 56795-2 Dual Ruby Orifice

  • 1/8" male or female connection
  • Synthetic ruby orifice and 303 stainless steel body
  • Shrouded orifice

UltraStream Nozzle Accessories

Our accessories are designed to Improve precision and minimize paper breaks. Purchase accessories and nozzles together to speed set-up by purchasing accessories and nozzles together.

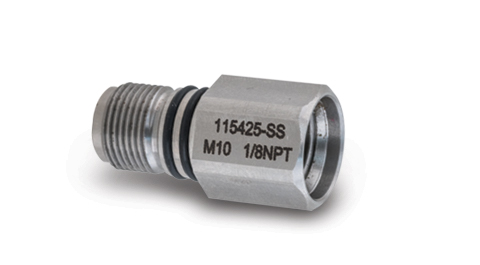

115425 & 115427 Trimming Feed Converter

115425 & 115427 Trimming Feed Converter

  • Convert trimming feeds back and forth between 1/8" to M10 x 0.75 threads
  • Retrofit existing installed M10 thread bases
  • 115425 - Convert M10 base for 1/8" nozzle
  • 115427 - Convert 1/8" base for M10 nozzle
  • 303 stainless steel body

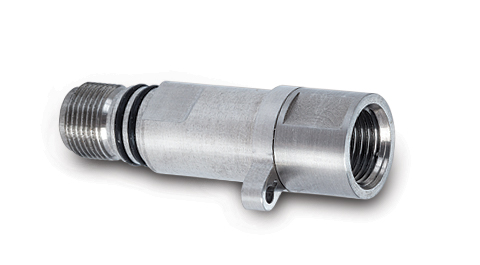

39290 Swivel Adapter

39290 Swivel Adapter

  • Add swivel functionality to any 1/8" UltraStream nozzle
  • 303 stainless steel body
  • Suitable for use with single orifice rub nozzle 72242 or dual orifice ruby nozzle 56795-2

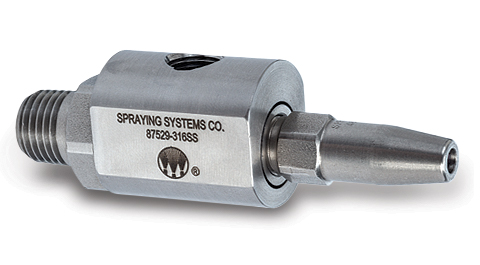

87529 Air Barrier Adapter Shown with 48461 UltraStream

87529 Air Barrier Adapter Shown with 48461 UltraStream

  • Prevents buildup on trim nozzles with a shroud of compressed air
  • 1/8" compressed air connection
  • 2 to 7 psi (0.14 to 0.48 bar) required for operation
  • Can be used with any single or dual orifice UltraStream nozzle
  • 303 or 316 stainless steel body
Alignment Devices for UltraStream Nozzles

Alignment Devices for UltraStream Nozzles

  • Quick and easy adjustment of UltraStream® nozzles to the exact trim position reduces downtime for nozzle alignment up to 70%
  • Use with different paper widths and grades; horizontal and rotational adjustments can be made quickly and accurately in 10 mm increments to ensure precise control of nozzle location – no tools required
  • Record final positions to ensure repeatable performance using calibration devices
  • Improve operator safety – handles and scales are located away from the nozzles

  • Multi-pipe alignment device provides a redundant stream to prevent sheet breaks due to spitting or broken streams

  • Goose-necked pipe design prevents turbulence in pipe before nozzle

  • Set-up is simple – UltraStream nozzles attach easily to arms; alignment arms can be removed without disrupting remaining arms and nozzle locations

  • For use with single or dual UltraStream nozzles with or without 38170 strainers

  • Stainless steel construction
